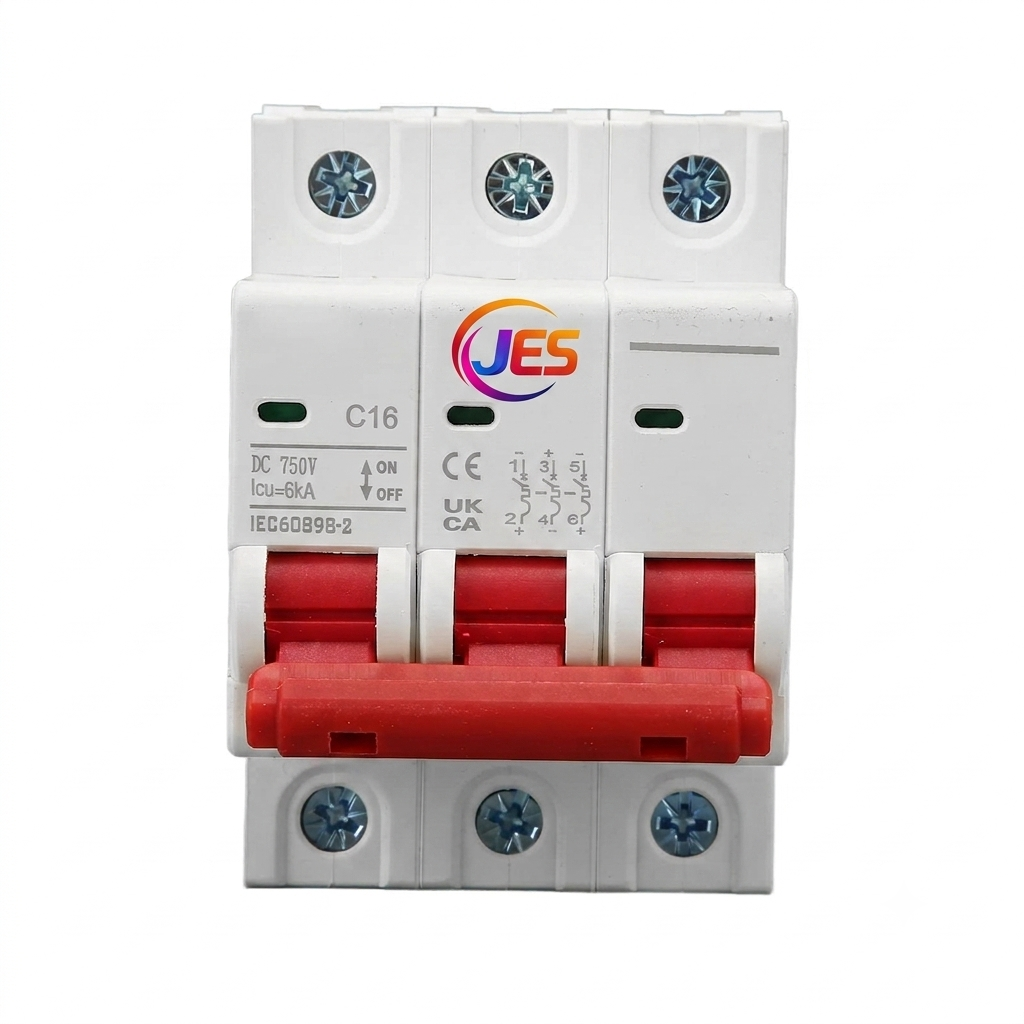

The C16 is our high-demand bulk circuit breakers solution, engineered for large-scale residential project supply. This 63A frame MCB provides essential overload and short-circuit protection for mass housing developments and residential tower blocks. As a leading miniature circuit breaker manufacturer, we ensure that every unit meets the GB/T 10963.1 standard, offering project contractors a reliable, cost-effective component for high-volume consumer unit assembly.
Rated working voltage: AC230V/400V
Rated frequency: 50Hz
Rated working current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Number of poles: 1P, 2P, 3P, 4P
Instantaneous tripping form: C type (5~10In), D type (10~20In)
Protection type: distribution protection, motor protection
Rated short-circuit breaking capacity (Icu): 4kA
Appearance and installation dimensions: See the instruction manual or selection manual
Installation method: 35mm standard rail installation
Product implementation standard: GB/T 10963.1
